Injection molded plastic gears are transforming modern mechanical systems by offering a lightweight, cost-effective, and highly scalable alternative to traditional metal gears. From automotive assemblies to consumer electronics, injection molded gears are widely used due to their precision, durability, and ability to be mass-produced efficiently.
For manufacturers seeking high-quality solutions, advanced tooling like the precision gear injection mould from greenvitality-mould.com demonstrates how optimized plastic gear mold design directly impacts performance, accuracy, and lifespan.
This comprehensive guide explores everything you need to know about injection molded plastic gears, including their advantages, applications, manufacturing processes, and comparisons with machined gears.

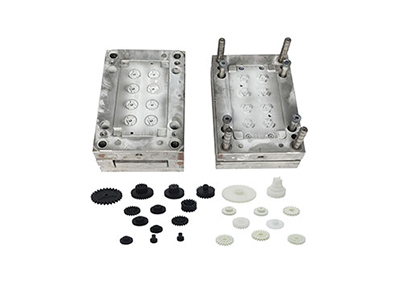

Injection molded plastic gears are mechanical components produced by injecting molten thermoplastic material into a precisely engineered gear mould. Once cooled, the material solidifies into a highly accurate gear shape.
This process—known as plastic gear molding—enables manufacturers to produce complex gear geometries with tight tolerances at high volumes.
Nylon (PA)
Polyoxymethylene (POM / Acetal)
Polycarbonate (PC)
ABS
Reinforced composites (glass-filled plastics)
These materials are selected based on required strength, wear resistance, and environmental conditions.
Injection molding offers several benefits over traditional manufacturing methods:
Once the plastic gear mold is developed, production costs per unit are significantly reduced, making it ideal for mass production.
Modern molds, such as those used in precision gear tooling solutions, ensure repeatable accuracy and minimal deviation.
Plastic gears reduce overall system weight, improving energy efficiency in applications like automotive and robotics.
Compared to metal gears, plastic gears operate more quietly due to their inherent damping properties.
Plastic materials resist rust and chemical degradation, making them suitable for harsh environments.
Injection molding allows integration of multiple features into a single component, reducing assembly complexity.
Injection molded gears are used across diverse industries:
| Industry | Applications |
|---|---|
| Automotive | Window regulators, seat adjusters, HVAC systems |
| Consumer Electronics | Printers, cameras, home appliances |
| Medical Devices | Pumps, diagnostic equipment |
| Industrial Machinery | Conveyor systems, automation equipment |
| Robotics | Motion control systems |
Their versatility makes injection molded plastic gears a preferred choice for both high-performance and cost-sensitive applications.
Understanding the difference between manufacturing methods is crucial when selecting the right gear solution.
| Feature | Injection Molded Gears | Machined Plastic Gears |
|---|---|---|
| Production Volume | High-volume | Low to medium volume |
| Cost per Unit | Low (after tooling) | High |
| Initial Tooling Cost | High | Low |
| Precision Consistency | Excellent (repeatable) | Moderate |
| Design Complexity | High (integrated features possible) | Limited |
| Lead Time | Longer setup, faster production | Faster setup, slower production |
Choose injection molded plastic gears for scalability and cost efficiency.
Choose machined gears for prototyping or low-volume production.
To ensure high-quality results, consider the following:
Experience in gear mould design
Use of advanced simulation tools
Proven track record in precision components
Ability to customize materials and designs
Strong quality control systems
Greenvitality Mould’s expertise in precision gear tooling makes it a strong partner for complex projects.
Yes, in many applications. Plastic gears are ideal for low-to-medium load systems where weight, noise reduction, and corrosion resistance are priorities.
Common choices include POM for precision and low friction, nylon for strength, and reinforced plastics for high-load applications.
Key considerations include material safety (food-grade plastics), wall thickness uniformity, cooling efficiency, and ease of ejection—similar to best practices in injection molded plastic gears.
Injection molded plastic gears represent a powerful solution for modern manufacturing challenges. With advantages in cost, scalability, and performance, they are rapidly replacing traditional gear systems across industries.
However, success depends heavily on the quality of the plastic gear mold and manufacturing expertise. By leveraging advanced solutions like the precision gear injection mould, manufacturers can achieve exceptional performance, consistency, and efficiency.
